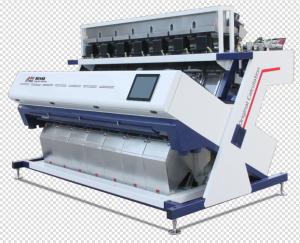

3.2-4.0KW 1280KG AMD Dustproof Rice Colour Sorter Machine
Product introduction
Its working principle depends on the different color of materials. Our machine separates original To different groups,to reach improve the materials quality.For example,it can sort moldy nuts out,it can separate red plastic particles from mixed different colors group, remove the bad rice,etc.
Delivery core
Industry mainstreamchips,commurnicationmodules
2020iteration new productstake thelead One step ahead,the future isexpected Reserved port,unlimited potential, utra-highvaluepreservation
Smart Core
Balanced system design,optimalintegrationof hardware and software Realtime selfinspetion Seff protection,low falure and stable operation Extendedlife of componentsand complete machine
Parameters
| Model | Output ( T/h ) | Carryover rate
(bad:good) | Accuracy(%) | Voltage | Power(KW) | Weight(Kg) | Dimension(mm) |
| RG5-64X | 3-8 | 100:1 | >99.95% | 220/50 | 3.2-4.0 | 1280 | 2201×1616×2000 |
| RG6-64X | 4.5-9 | 100:1 | >99.95% | 220/50 | 4.2-4.6 | 1490 | 2516×1616×2000 |
| RG7-64X | 5-10 | 100:1 | >99.95% | 220/50 | 4.8-5.5 | 1680 | 2831×1616×2000 |
| RG8-64X | 6-12 | 100:1 | >99.95% | 220/50 | 5.6-6.0 | 1860 | 3146×1616×2000 |
| RG10-64X | 7-16 | 100:1 | >99.95% | 220/50 | 6.5-7.5 | 2180 | 3776×1616×2000 |
| RG12-64X | 9-12 | 100:1 | >99.95% | 220/50 | 7.8-8.5 | 2620 | 4406×1616×2000
|
Feature
Big Data
Cloud storage,massive database,wide range of ricematerial solutions,multiple choices on one machine
Ai Smart Sorting
Internet+mobile App,remote control,remote monitoring of machine status,smart cloud backup
Qualitative unity
Centroidcentroid coordinate algorithm, material cross positioning
Dust and shatterproof
Super large air volume, three-dimensional ring suction, Use soft landing and buffer device to reduce the depth of rice crushing rate
Product Tags:
|
|
3.2KW Dustproof CCD High Capacity Rice Color Sorter Images
|
